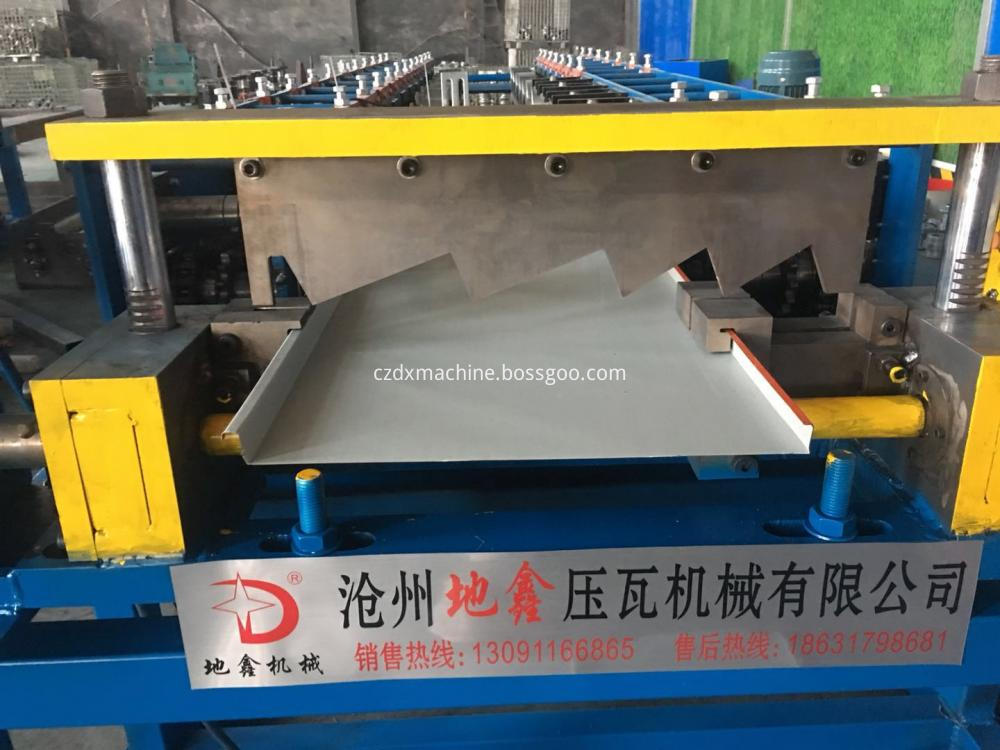

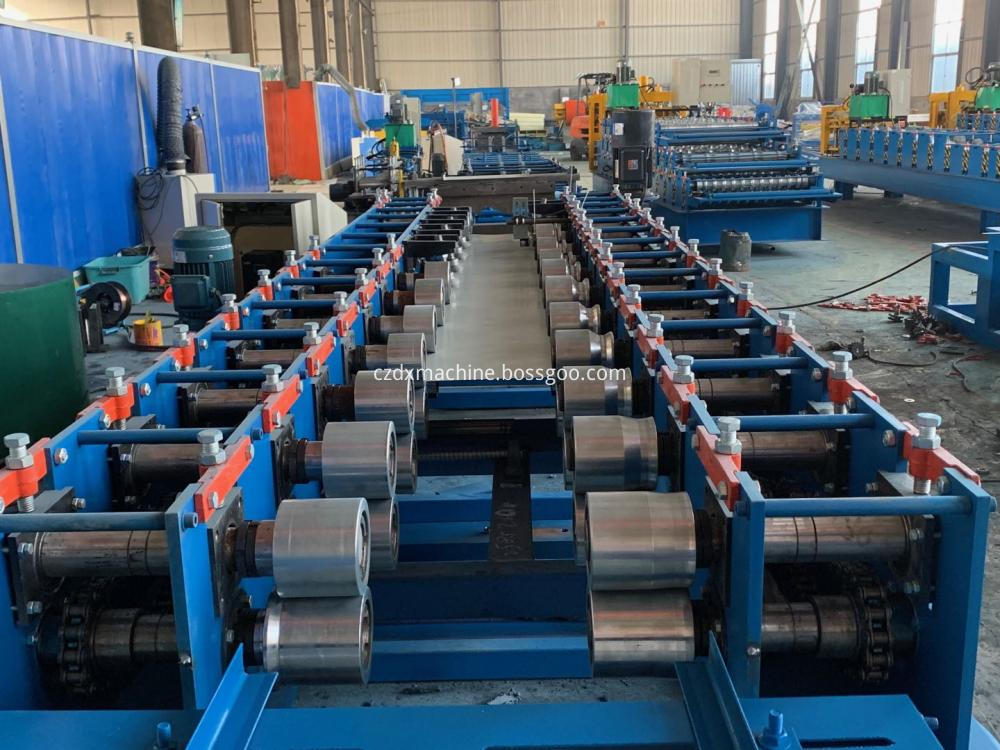

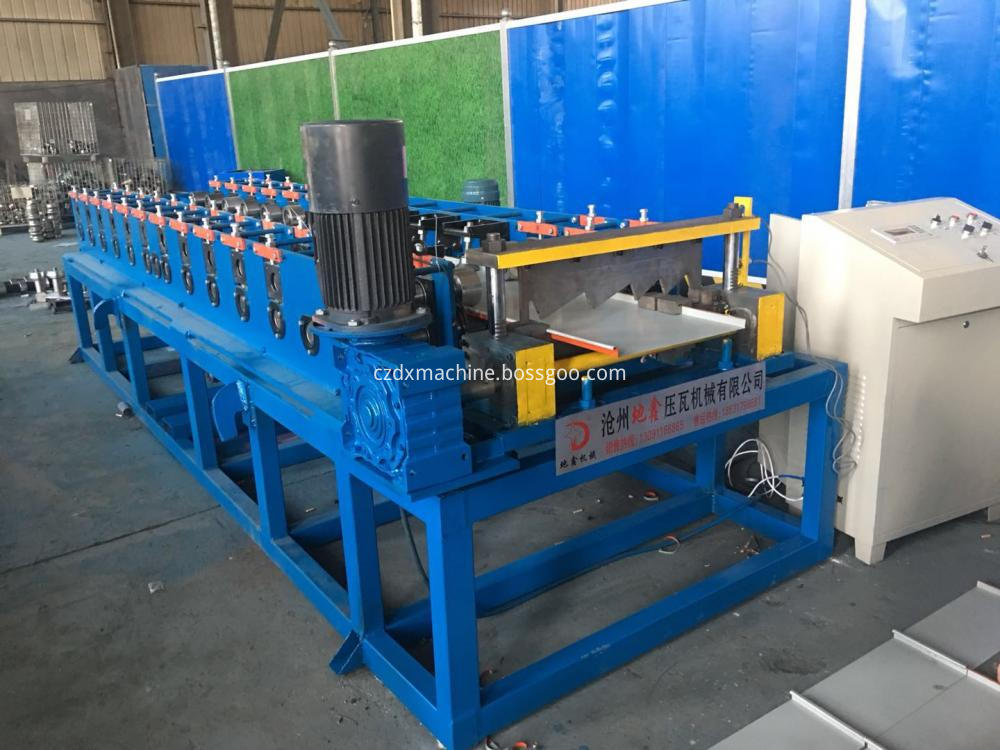

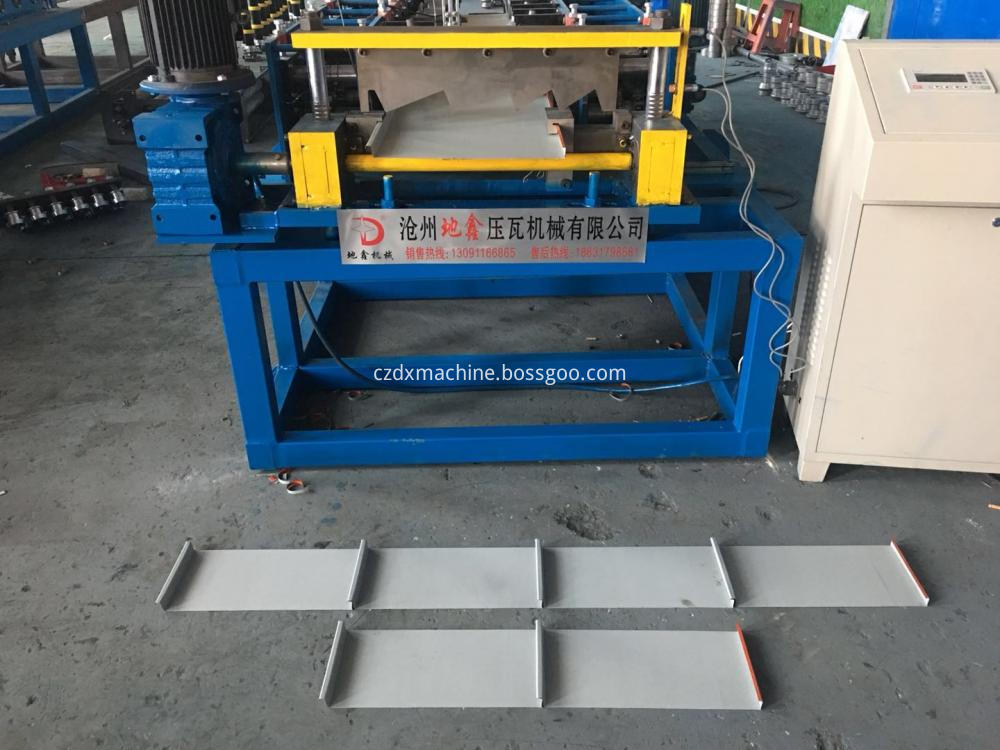

Roofing panel metal tile making forming machine
|
1 |
Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
|
2 |
Width of the feeding material |
820/470/760 mm |
|
3 |
Roller station |
16 rows or custom |
|
4 |
Thickness of feeding material |
0.3-0.38mm |
|
5 |
Power |
5.5kw |
|
7 |
Productivity |
6-12m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Weight |
About 4 T |
| 10 | Size |
8200*950*1000mm |
|
11 |
Voltage |
380V 50Hz 3phases |
|
12 |
Rolling material |
Carbon Steel 45# |
|
13 |
Material of the cutting plate |
Cr12 |
| 14 | Wall thickness of main forming machine |
14mm steel plate |
| 15 | Main forming machine body |
400 mm H steel |
|
16 |
Control system |
PLC control |
