| No. | Item | Specification | |
| 1 | Steel coil | Width |
Max 1250/1220/1219/1000/914mm |
| Material | Ppgi/gi/gl/Alu-zinc | ||
| Thickness |
0.3-0.8mm |
||
| Hardness | Normal hardness/G550/HRB90 | ||
| 2 | Forming | Frame | 300-450mm Height |
| Stations |

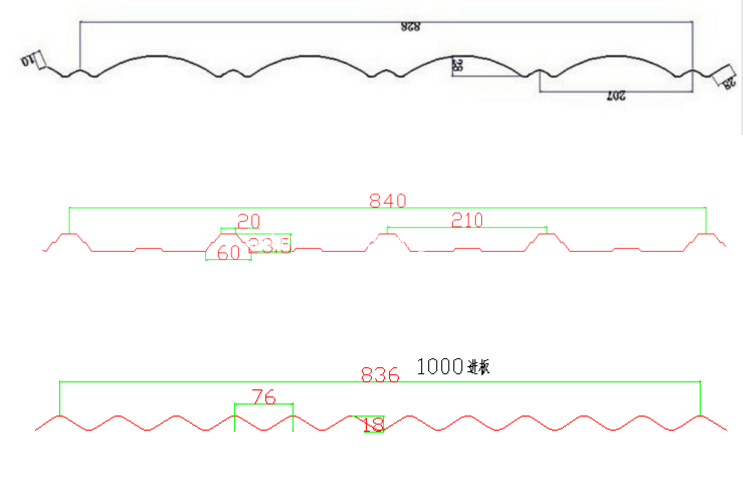

As design of drawing Main: 9-18 stations |
||
| Rollers |
High grade No 45# steel with hard 0.05mm chromed |
||
| Shaft | High grade No 45# steel | ||
| Diameter of shaft |
As design of drawing Main: 70-80mm |
||
| Chain | Main: 1-1.5inch | ||
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 3-11kw | ||
| Language | English or as your request | ||
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic | ||
| Hydraulic pump | Main: 3-7.5kw | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler | Manual | 6.5 Tons |
| 6 | Product | Receiving table | Manual |
|
We can also talk and confirm other details before ordering. We can give you suggestions. Bella Hao Tel/what'sapp:008618231723279,email :dxmachine1@czdx.ltd Choose us, own professional service. |
|||
Some machine pictures for your reference.
