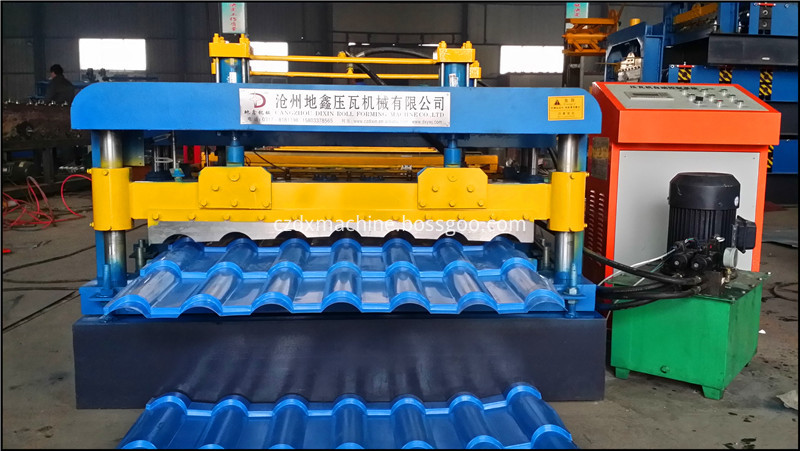

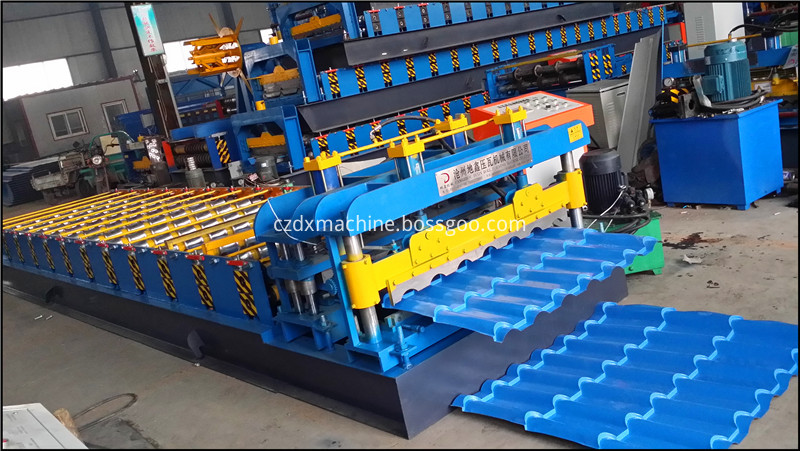

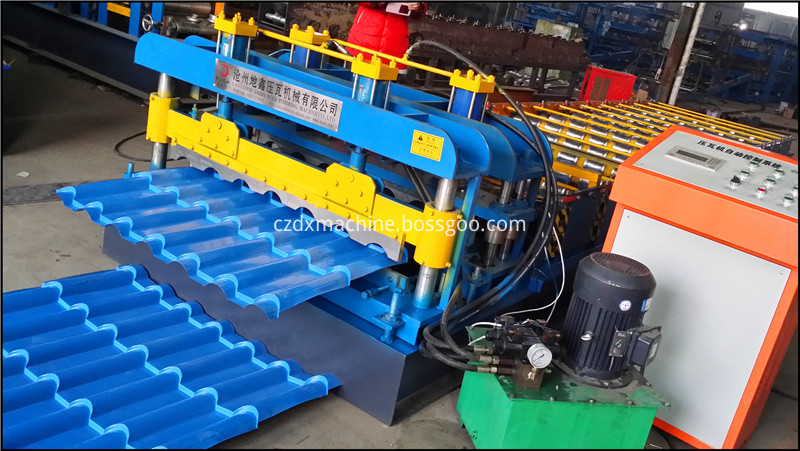

Glazed tile roll forming machine
Technical Parameter
(1) Processing material: aluzinc/galvanized steel/colored steel coil(2) Material thickness: 0.3-0.8mm

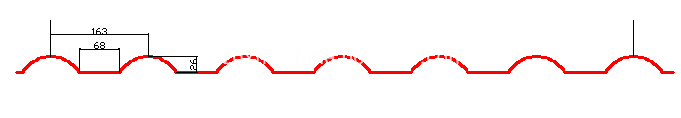

(3) Effective width: 978mm
(4) Feeding width: 1200mm
(5) Main motor power: 4kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Machine speed:2-4m/min
(13) Control systerm: PLC computer control with inverter
(14) Power supply: 415V,50A or according to customer`s request
(15) 0veral sized: 6800mm*1500mm*1500mm
