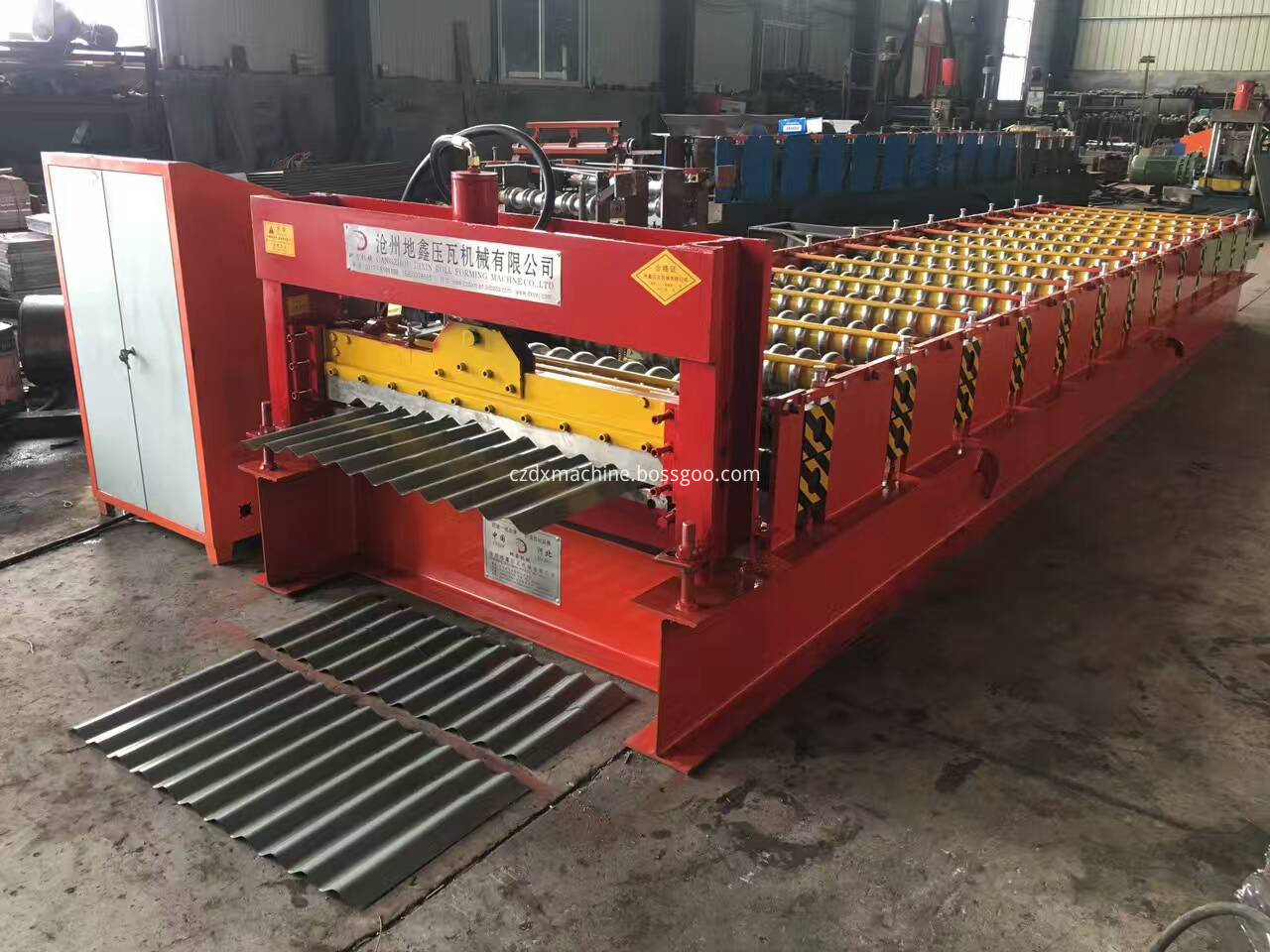

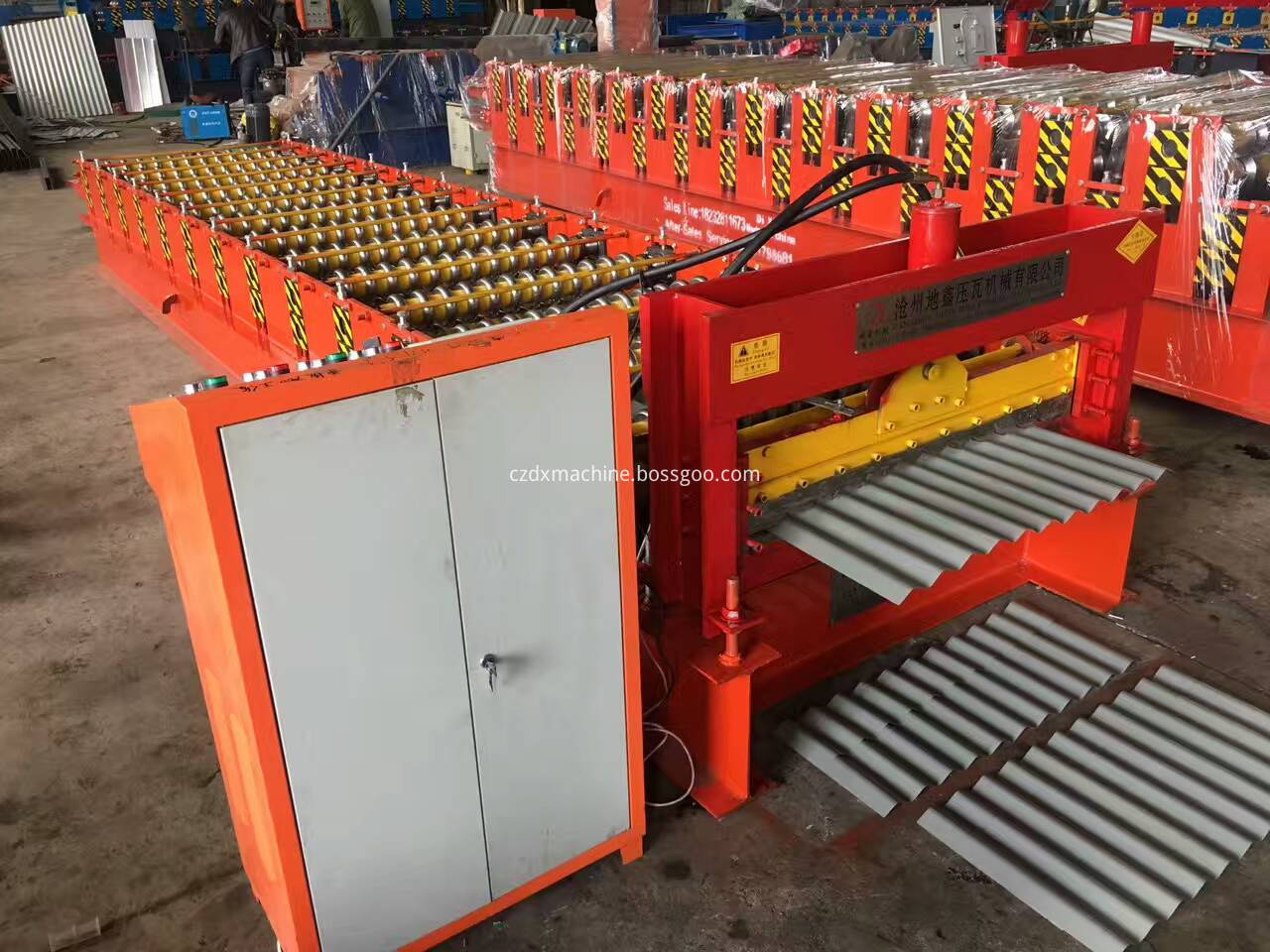

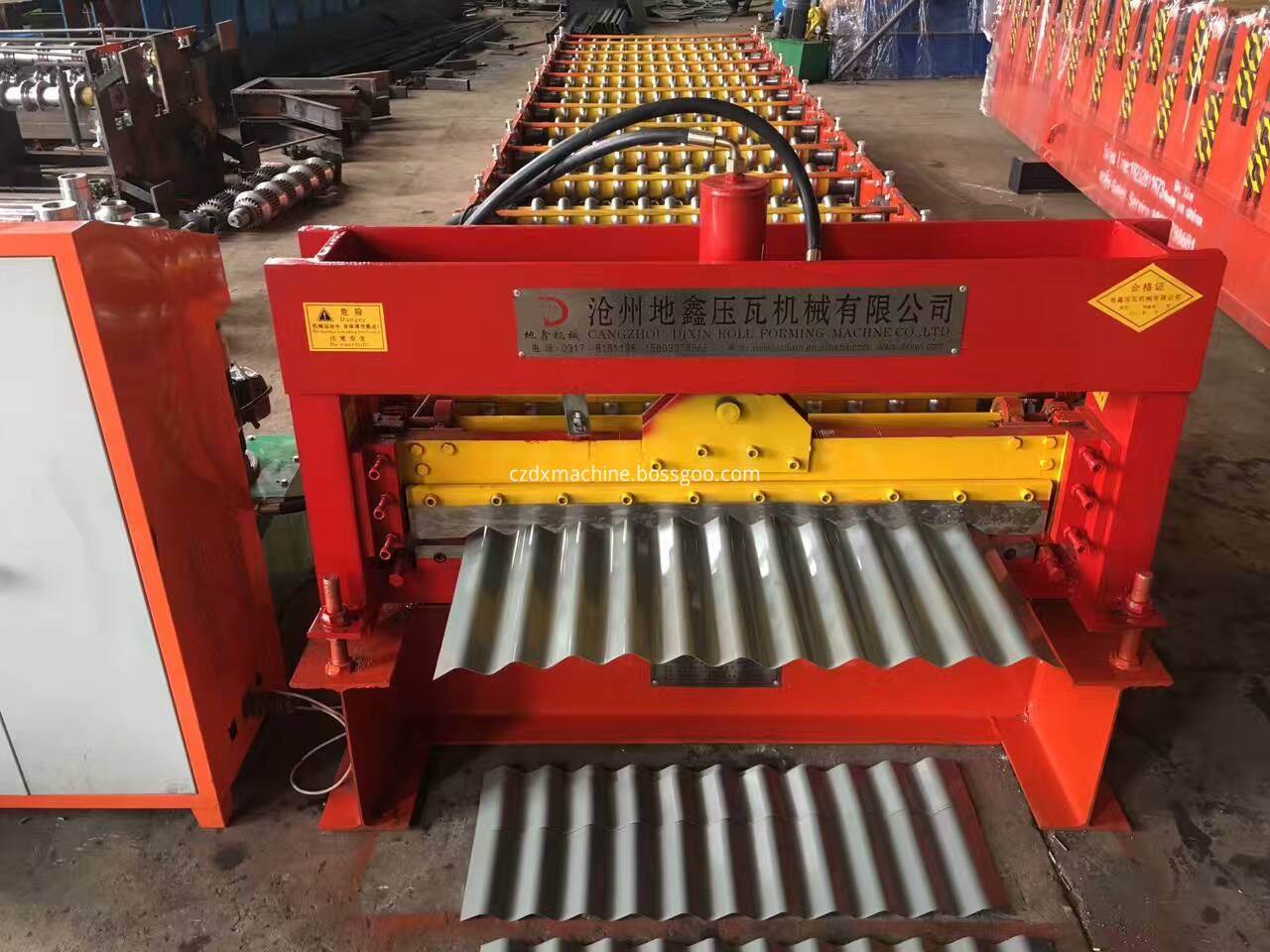

988 corrugated roll forming Machine
Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm or as your need
(3) Effective width: 988mm
(4) Feeding width: 1200mm
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: PLC computer control with inverter and touch screen
(13) Power supply: 380V, 3 Phase, 60Hz (According to customer requirements)
(14) 0veral sized: 6500mm*1400mm*1400mm
(15)Production speed:10-12m/min
Manual decoiler
Un-powered, single head, max capacity: 5Ton
Hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
Computer control cabinet
It adopts PLC control, the target sheet length is adjustable.
Computed mode has two modes: automatic and manual.
6. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
7. Warranty
12 months, and lifelong technical support service
8. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets
and local accommodation, and pay 100 USD/day for salary.
9. Package
Standard export package, water-proof package, covered with plastic film
