As a hang ceiling, light steel truss has the features of light weight, strong strength and sound insulation, and is waterproof, shockproof, dustproof, warm-keeping, among others. Light steel truss adopts high-quality hot galvanized steel strip as the raw material, and by cold rolling to form a kind of metal skeleton for construction. It is usually used for plasterboard construct decoration of no-bearing wallboard and new type ceiling.
As a basic material, it is widely used for many aspects as assistant supporters. According to different usages, it has ceiling-hanging truss and supporting truss. According to different shape, it has V, C, L, and U types profile truss.

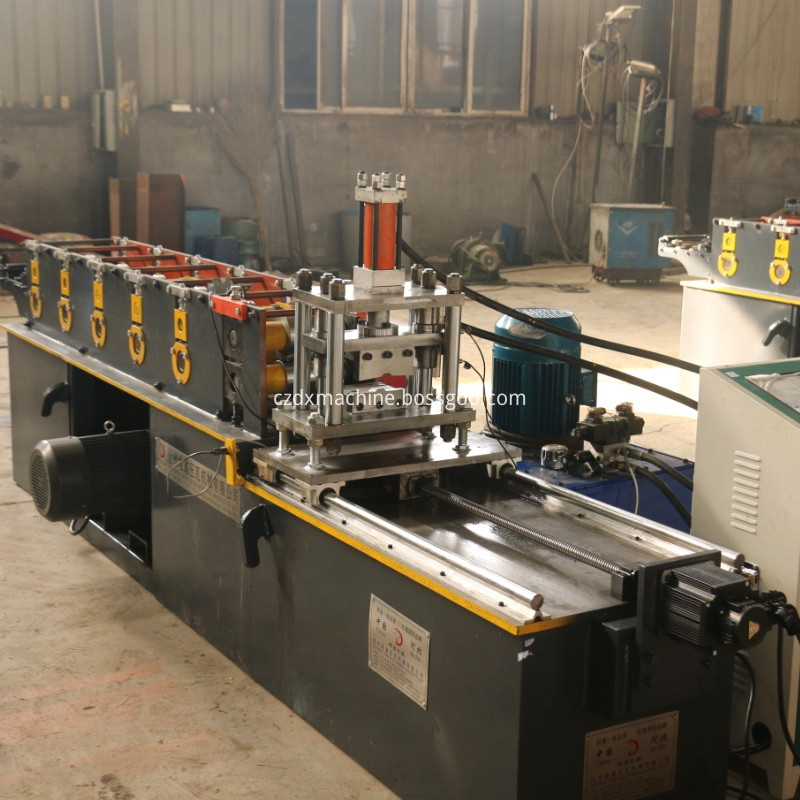

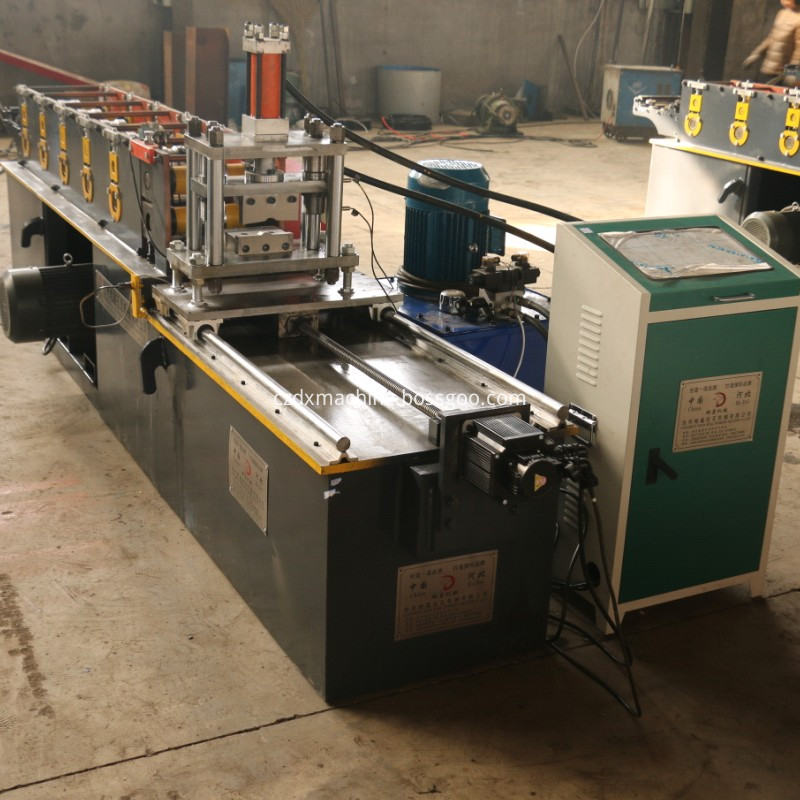

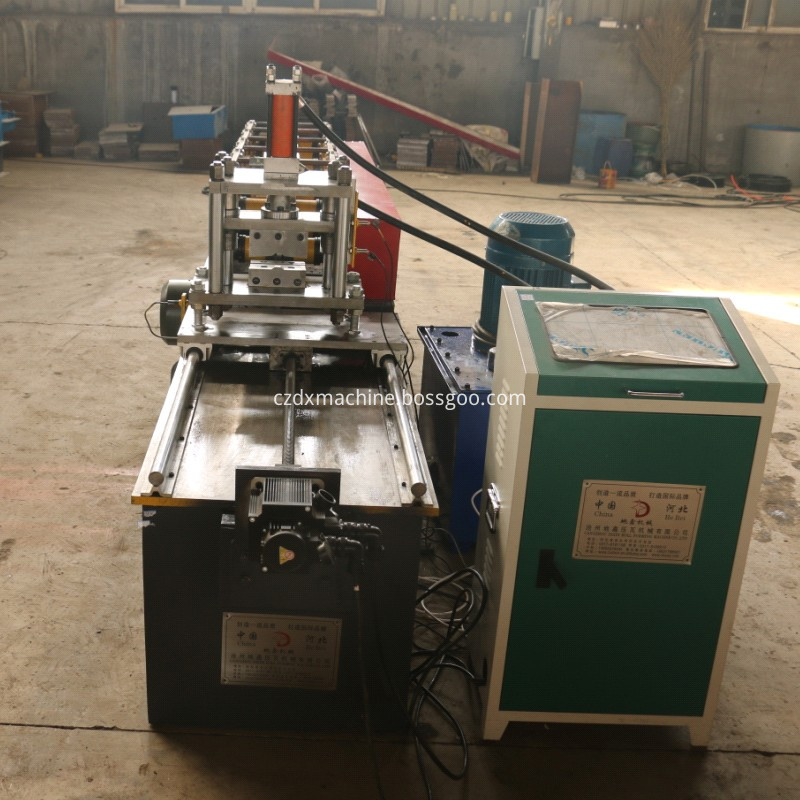

Main Features
(1)Plate Material: Galvanized plate/color steel
(2)Thickness of the plate : 0.5-1.0mm
(3)Wall thickness of the main forming machine: 16mm steel plate
(4)Transmission : Gear drive
(5) Roller material: bearing steel with quenched treatment 62
(6) Rollers: 13steps including 9 steps for leveling, 3 steps for fixing position
(7) Diameter of active shaft: 60mm, 45# steel
(8) Hydraulic pump power: 4KW
(9) PLC control system with inverter
