Raw material |
|
|
material |
colored steel sheet, galvanized steel sheet, aluminum sheet |
|
thickness of coil sheet |
0.2-0.8 mm |
|
material expand width |
1000mm |
|

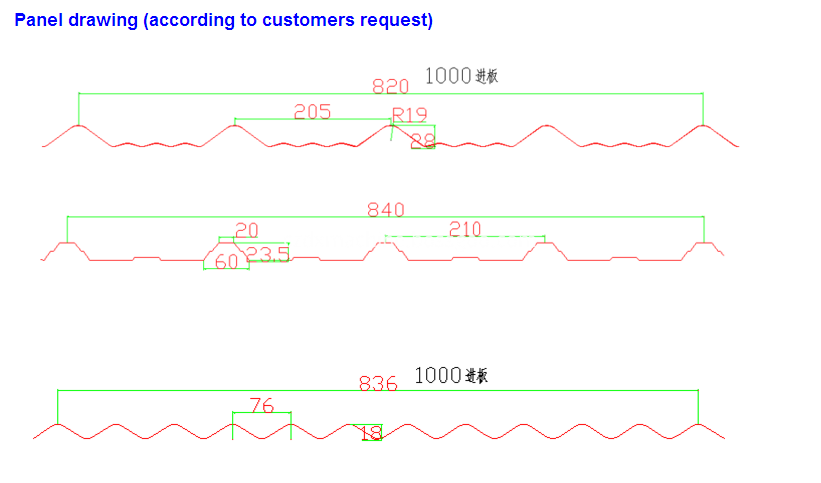

Efficiency width |
820/840/836mm |
|
roller material |
high grade NO. 45 forged steel with 0.05mm hard chrome plating |
|
shaft material |
high grade NO. 45 carbon wrought steel |
|
cutting blade |
Cr12 mould steel with quenched treatment |
|
diameter of shaft |
75mm |
|
main frame |
300 H steel |
|
Side plate thickness |
16 mm |
|
Chain size |
1 inch |
|
forming steps |
9/11/13 stations |
|
productivity |
8-12m/min |
|
hydraulic station power |
5.5 KW |
|
hydraulic pressure |
10-12MPa |
|
appearance size |
5700mm*1500mm*1500mm |
|
hydraulic oil |
40# hydraulic oil |
|
Electric tension |
380V 50 Hz 3 Phase or as your requirement |
|
Cut Mode |
Hydraulic Guide Column |
|
Cutter materia |
Cr12 Heat Treatment |
|
Electronic control system |
PLC (Delta) Touch Screen |
|
Color |
Blue and orange |
