We offers the most productive and cost effective roll forming equipment for the metal roofing and architectural
sheet metal industries. Since 2000 we have been leading the industry with our innovation and service.
Panel drawing
Processes: Man-made un-coiler-Roll forming machine-PLC system-Hydraulic system--Pressing-Receiving table
Technical Parameter
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 714/840mm
(4) Feeding width: 1000mm
(5) Main motor power: 4kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Machine speed:10-12m/min
(13) Control systerm: PLC computer control with inverter
(14) Power supply: 380V, 3 Phase, 60Hz or according to customer`s request
(15) 0veral sized: 6800mm*1500mm*1500mm

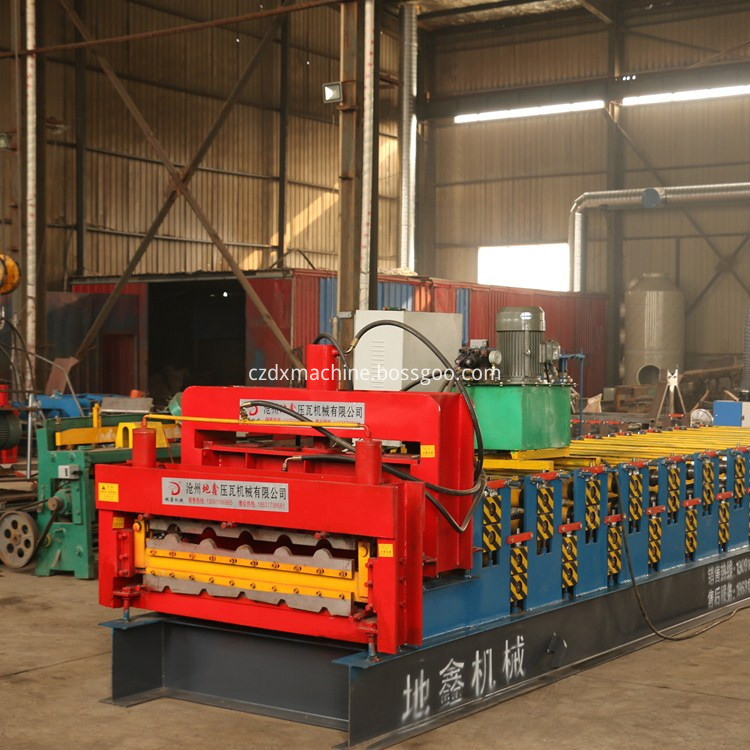

Some machine pictures for your reference
3.Configurations
Components of line:
(1). Man-made un-coiler set
(2). Main machine for roll forming set
(3). Control system set
(4). Hydraulic system set
(5). Receiving table Set
(6)Blade
Packing and delivery
Packaging Details: main machine is naked and the computer control box is packed by carton box
Delivery Detail: 30days after receiving the deposit
1.We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
Others profile

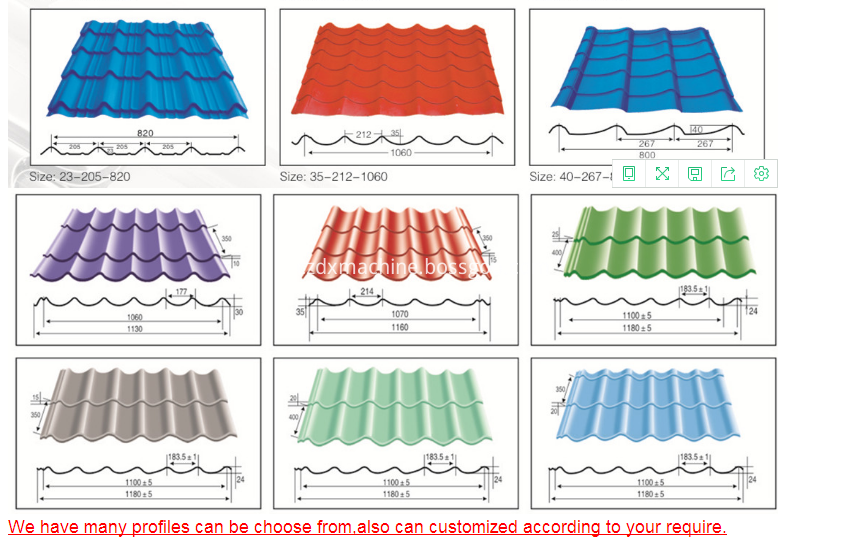

Roof and wall panel of rollforming machine, such as steel purlin roll forming machine ,Ridge cap roll forming machine , Hydraulic decoiler
siding wall roll forming machine, curving machine and so on , especially according to customers request to produce
Ours services
1,immediate respond
All the customers has SUORONG STEEL full attention, we will be 24/7 on line at your services to provide the immediate and professional suggestion. SUORONG STEEL has exported to more than 50 countries in the world, 8 oversea subsidiaries is on the way as well, could provide you the immediate respond services with our sincerity.
2, professional sugession
With decades commitment, more than 90% technician has incepted the mechanical bachlor degree in SUORONG team, and almost 60% has more than 6 years' steel manufacturing and consulting experiences. Could provide you the professional suggestion with our expertise acumen.
3, short delivery period
30 working days after the deposit.
4. wanranty issued
Our machine's warranty period is 12months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
